Y2 SERIES  MOTORS

   Y2 SERIES DIMENSIONS

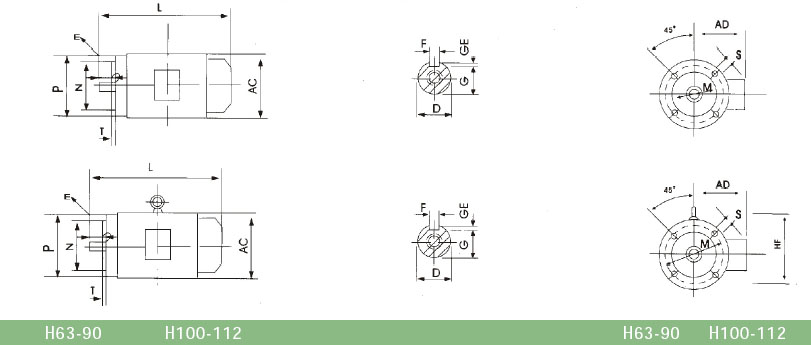

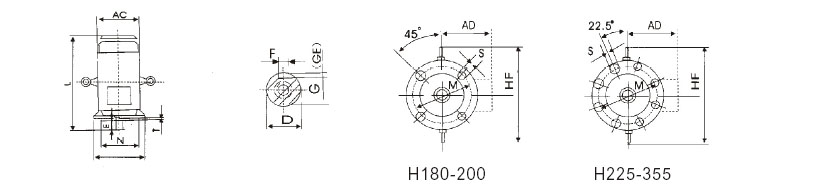

    FRAME WITHOUT FEET AND END-SHIELD WITH FLANGE

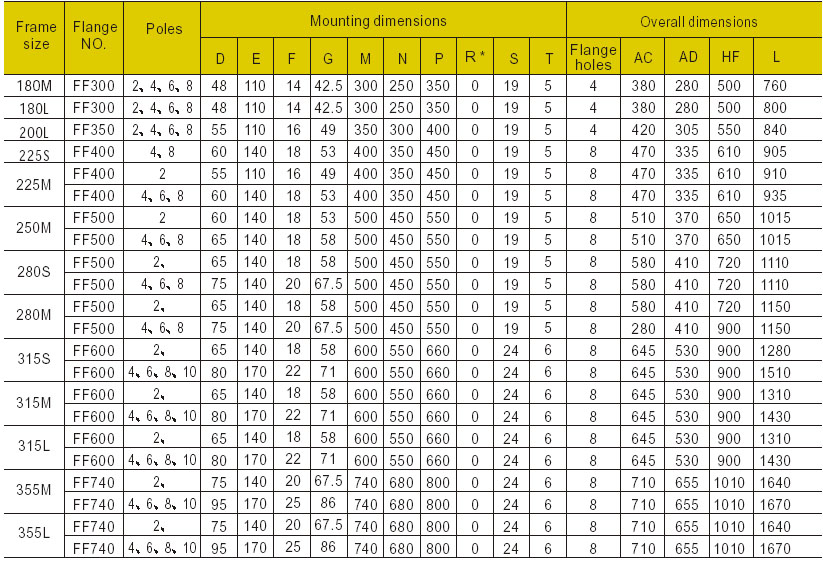

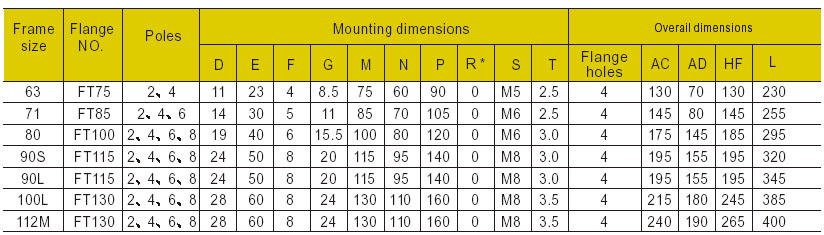

FRAME TYPE , FRAME WITHOUT FEET AND END-SHIELD WITH FLANGE      (WITH PLAIN HOLES)
