Y2 SERIES  MOTORS

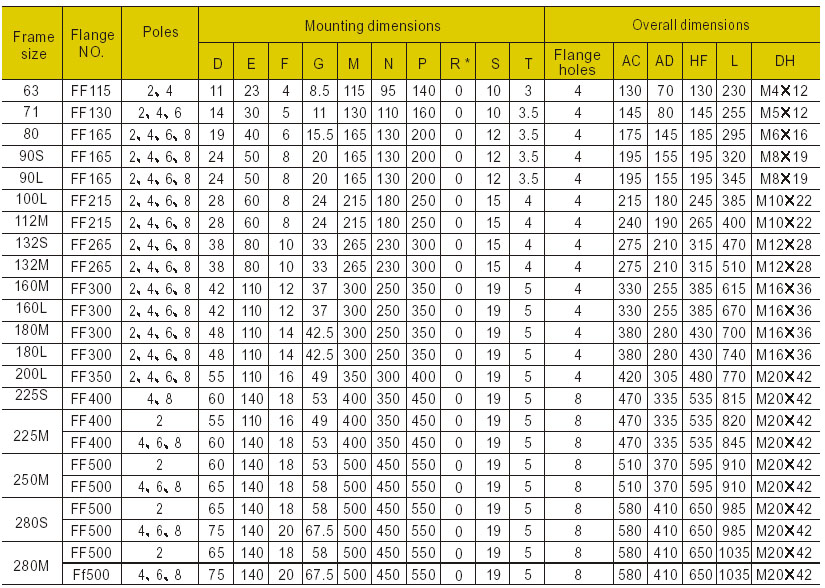

   Y2 SERIES DIMENSIONS

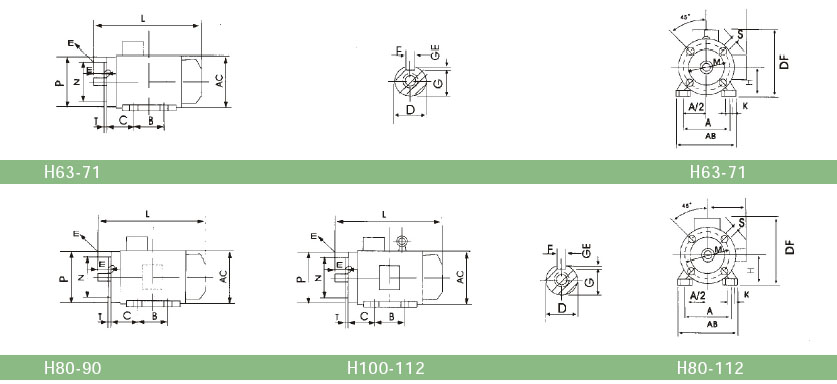

    FRAME WITHOUT FEET AND END-SHIELD WITH FLANGE

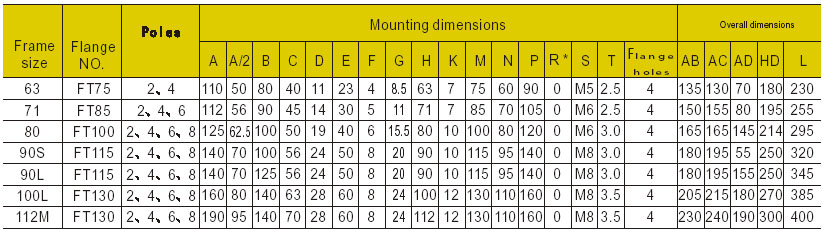

    FRAME WITH FEET AND END-SHIELD WITH FLANGE
