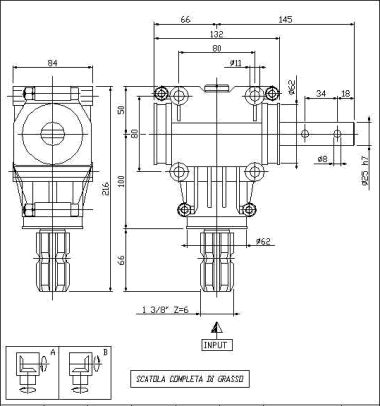

TYPE XL-012


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

 OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL
1: 1 540

540

11

8

145  Kg.3.6 TYPE QUANTITY 1


TYPE XL-010


GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

 OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1: 3.25

540

1755



Kg 4.7

TYPE QUANTITY 1

1: 2.78

540

1501

10

7

45



Kg 4.7

SAE.90EP

1: 1.90

540

1026

14

10

93



Kg 4.7



1: 1.35

540

729

16

12

149



Kg 4.7



1: 1

540

540

15

11

189



Kg 4.7



1.35: 1

540

400

13

10

221



Kg 4.7



1.90: 1

540

284

9

7

216



Kg 4.7



2.78: 1

540

194

5

4

175



Kg 4.7



3.25: 1

540

166

4

3

164



Kg 4.7
