speed reducer

speed reducer

speed reducer

WX

WO

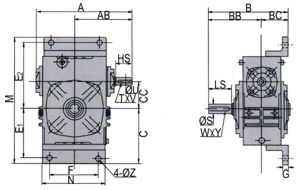

WX Shaft Direction	WO Shaft Direction

SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	INPUT SHAFT			OUTPUT SHAFT			KG
SIZE	RATIO	A	AB	B	BB	BC	C	CC	E1	E2	F	M	N	G	Z	HS	U	T?	LS	S	W?	KG
40	1/10 1/20 10 1/40 1/50 1/60	148	91	123	78	45	85	40	72	97	70	195	96	10	9	25	12	4?.5	28	14	5?	4.2
50		175	105	145	95	50	110	50	90	110	90	225	115	14	11	30	12	4?.5	40	17	5?	6.5
60		195	120	165	110	55	120	60	102	129	100	257	126	15	11	40	15	5?	50	22	7?	9
70		234	140	195	130	65	135	70	120	155	120	305	155	20	15	40	18	5?	60	28	7?	14
80		264	160	210	140	70	155	80	140	180	140	350	174	20	15	50	22	7?	65	32	10?.5	21
100		322	190	253	163	90	180	100	165	215	190	410	224	20	15	50	25	7?	75	38	10?.5	33
120		385	230	285	185	100	218	120	195	255	220	495	264	25	18	65	30	7?	85	45	12?.5	51
135		435	260	320	210	110	253	135	230	285	260	560	304	30	18	75	35	10?.5	95	55	15?	75
155		494	302	392	252	140	275	155	250	305	280	605	330	35	20	85	40	10?.5	110	65	15?	115
