speed reducer

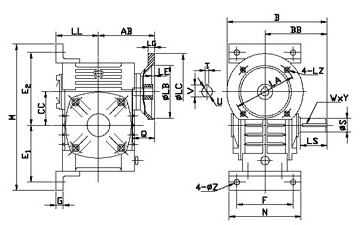

WDZ	Shaft Direction

SIZE	KW	RATIO	AB	LL	B	BB	CC	E₁	E₂	F	M	N	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT			KG
															LA	LB	LC	LE	LG	LZ	Q	U	T?	LS	S	W?
50	0.18	1/10 1/20 10 1/40 1/50 1/60	84	72	165	95	50	90	110	95	225	120	14	11	115	95	140	5	10	M8	25	11	4?2.8	40	17	5?	8.5
60	0.37		92	80	190	110	60	102	129	105	257	130	15	11	130	110	160	5	12	M8	35	14	5?6.3	50	22	7?	11
70	0.37		110	95	210	130	70	120	155	115	305	150	20	15	130	110	160	5	12	M8	35	14	5?6.3	60	28	7?	17
	0.75				230										165	130	200		15	M10	45	19	6?1.8
80	0.75		128	105	240	140	80	140	180	135	350	170	20	15	165	130	200	5	15	M10	45	19	6?1.8	65	32	10??	26
	1.5																				55	24	8?7.3
100	1.5		145	135	263	163	100	165	215	155	410	190	20	15	165	130	200	5	15	M10	55	24	8?7.3	75	38	10?.5	39
120	2.2		182	160	310	185	120	195	225	180	495	230	25	18	215	180	250	5	18	M12	65	28	8?1.3	85	45	12?.5	60
	3.0
135	3.0		200	185	335	210	135	230	285	200	560	250	30	18	215	180	250	5	18	M12	65	28	8?1.3	95	55	15?	88
	4.0
155	5.5		236	220	402	252	155	250	305	220	605	280	35	20	265	230	300	5	20	M12	85	38	10?1.3	110	60	15?	120
175	7.5		240	240	412	262	175	273	348	250	675	310	40	20	265	230	300	6	18	M12	85	38	10?1.3	110	65	18?	158
