speed reducer

WDKA

WDKS

Shaft Direction
speed reducer

speed reducer

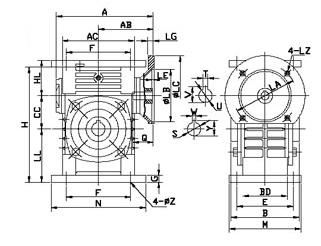

SIZE	KW	RATIO	A	AB	AC	B	BD	CC	E	F	H	HL	LL	M	N	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT		KG
																		LA	LB	LC	LE	LG	LZ	Q	U	T?	S	W?
40	0.12	1/10 1/20 10 1/40 1/50 1/60	138	76	96	90	60	40	80	110	135	45	60	100	130	10	9	115	95	140	5	10	M8	25	11	4?2.8	20	6?2.8	5
50	0.18		155	84	115	107	70	50	95	110	165	50	80	120	140	15	11	115	95	140	5	10	M8	25	11	4?2.8	20	6?2.8	8.5
60	0.37		170	92	126	117	76	60	105	120	195	60	93	130	150	18	11	130	110	160	5	12	M8	35	14	5?6.3	25	8?8.3	11
70	0.37		206	110	155	131	84	70	115	150	233	73	108	150	190	18	15	130	110	160	5	12	M8	35	14	5?6.3	30	8?3.3	17
	0.75																	165	130	200		15	M10	45	19	6?1.8
80	0.75		232	128	170	144	100	80	135	180	268	83	123	170	220	18	15	165	130	200	5	15	M10	45	19	6?1.8	35	10?8.3	26
	1.5																							55	24	8?7.3
100	1.5		266	145	204	175	114	100	155	220	330	100	150	190	270	20	15	165	130	200	5	15	M10	55	24	8?7.3	40	12?3.3	39
120	2.2		340	182	260	200	128	120	180	260	395	120	180	230	320	25	18	215	180	250	5	18	M12	65	28	8?1.3	45	14?8.8	60
	3.0
135	3.0		375	200	296	212	148	135	200	290	455	135	215	250	350	30	18	215	180	250	5	18	M12	65	28	8?1.3	60	18?4.4	88
	4.0
155	5.5		442	236	330	312	170	155	220	320	493	135	235	280	380	32	20	265	230	300	5	20	M12	85	38	10?1.3	70	20?4.9	120
175	7.5		465	240	370	334	186	175	250	350	558	160	260	310	410	37	20	265	230	300	6	18	M12	85	38	10?1.3	80	22?5.4	160
