speed reducer

speed reducer

EWA	Shaft Direction

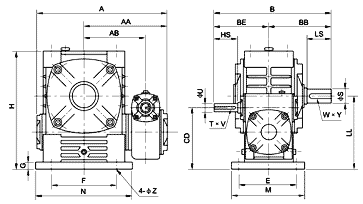

SIZE	RATIO	A	AA	AB	F	N	B	BB	E	M	BE	H	LL	CD	G	Z	INPUT SHAFT			OUTPUT SHAFT
SIZE	RATIO	A	AA	AB	F	N	B	BB	E	M	BE	H	LL	CD	G	Z	HS	U	TV	LS	S	WY
40-60	1/200 100 1/400 1/500 1/600 1/800 1/900	232	156	112	120	150	201	110	105	130	91	195	120	100	18	11	25	12	42.5	50	22	74
50-80		297	192	139	180	220	245	140	135	170	105	268	163	133	18	15	30	12	42.5	65	32	104.5
60-100		337	215	161	220	270	283	163	155	190	120	330	200	160	20	15	40	15	53	75	38	104.5
70-120		412	258	195	260	320	325	185	180	230	140	395	240	190	25	18	40	18	53	85	45	124.5
80-135		475	300	230	290	350	370	210	200	250	160	455	270	215	30	18	50	22	74	95	55	155
100-155		549	349	265	320	380	430	252	220	280	178	493	290	235	32	20	50	25	74	110	60	155
120-175		605	385	290	350	410	492	262	250	310	230	558	335	280	37	20	65	30	74	110	65	186
135-200		674	431	323	350	435	565	305	290	360	260	620	375	310	45	22	75	35	104.5	125	70	207
