speed reducer

speed reducer

EO	Shaft Direction

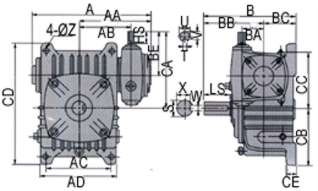

SIZE	RATIO	A	AA	AB	AC	AD	B	BA	BB	BC	BE	CA	CB	CC	CD	CE	Z	INPUT SHAFT				OUTPUT SHAFT
SIZE	RATIO	A	AA	AB	AC	AD	B	BA	BB	BC	BE	CA	CB	CC	CD	CE	Z	HS	U	T	V	LS	S	W	X
50-80	1/200 100 1/400 1/500 1/600 1/800 1/900	289	184	132	140	176	210	50	140	70	105	185	130	150	320	20	15	30	12	4	9.5	65	32	10	27.5
60-100		352	219	161	190	226	245	60	155	90	120	220	155	180	375	30	15	40	15	5	12	75	38	10	33.5
70-120		417	258	195	220	266	285	70	185	100	140	260	185	215	450	30	18	40	18	5	15	85	45	12	40.5
80-135		462	287	211	260	306	320	80	210	110	160	295	210	235	495	35	18	50	22	7	18	95	55	15	50
100-155		542	349	257	290	350	392	100	252	140	190	345	245	295	590	40	20	50	25	7	21	110	60	15	55
120-175		585	376	275	320	394	412	120	262	150	230	405	267	323	640	45	20	65	30	7	26	110	65	18	59
