speed reducer

speed reducer

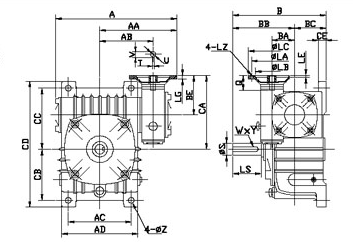

EDO	Shaft Direction

SIZE	KW	RATIO	A	AA	AB	F	N	B	CC	BB	BC	BE	CA	E1	E2	M	G	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT
																			LA	LB	LC	LE	LG	LZ	Q	U	TV	LS	S	WY
50-80	0.18	1/200 100 1/400 1/500 1/600 1/800 1/900	314	209	139	140	176	210	50	140	70	84	164	130	150	320	20	15	115	95	140	5	10	M8	25	11	412.8	65	32	104.5
60-100	0.37		363	241	161	190	226	245	60	155	90	92	192	155	180	375	30	15	130	110	160	5	12	M8	35	14	516.3	75	38	104.5
70-120	0.37		429	275	195	220	266	285	70	185	100	110	230	185	215	450	30	18	130	110	160	5	12	M8	35	14	516.3	85	45	124.5
	0.75		449	295															165	130	200		15	M10	45	19	621.8
80-135	0.75		505	330	230	260	306	320	80	210	110	128	263	210	235	495	35	18	165	130	200	5	15	M10	45	19	621.8	95	55	155
	1.5																								55	24	827.3
100-155	1.5		565	365	265	290	350	392	100	252	140	145	300	245	295	590	40	20	165	130	200	5	15	M10	55	24	827.3	110	60	155
120-175	2.2		635	415	290	320	394	412	120	262	150	182	357	267	323	640	45	20	215	180	250	5	18	M12	65	28	831.3	110	65	186
	3.0
135-200	3.0		691	448	323	370	440	480	135	305	175	200	400	290	360	710	42	22	215	180	250	5	18	M12	65	28	831.3	125	70	207
	4.0
