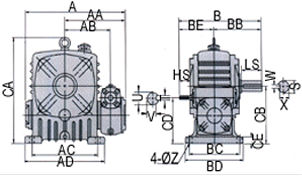

FCEA	Shaft Direction

SIZE	RATIO	A	AA	AB	AC	AD	B	BB	BC	BD	BE	CA	CB	CD	CE	Z	INPUT SHAFT				OUTPUT SHAFT
SIZE	RATIO	A	AA	AB	AC	AD	B	BB	BC	BD	BE	CA	CB	CD	CE	Z	HS	U	T	V	LS	S	W	X
40-60	1/200 100 1/400 1/500 1/600 1/800 1/900	232	156	112	120	150	195	110	105	130	85	210	120	100	20	11	25	12	4	9.5	50	22	7	18
50-80		289	184	132	180	220	247	140	135	170	105	278	160	130	20	15	30	12	4	9.5	65	32	10	27.5
60-100		352	219	161	220	270	294	155	155	190	120	372	200	160	25	15	40	15	5	12	75	38	10	33.5
70-120		417	258	195	260	320	325	185	180	230	140	430	240	190	30	18	40	18	5	15	85	45	12	40.5
80-135		462	287	211	290	350	370	210	200	250	160	491	270	215	30	18	50	22	7	18	95	55	15	50
100-155		542	349	257	320	390	442	252	220	280	190	526	290	235	38	20	50	25	7	21	110	60	15	55
120-175		585	376	275	350	430	492	262	250	310	230	536	335	280	40	20	65	30	7	26	110	65	18	59
