speed reducer

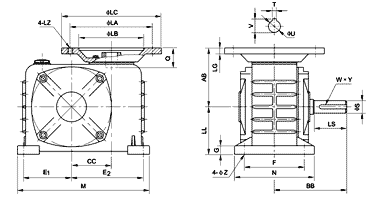

DZ	Shaft Direction

SIZE	KW	RATIO	AB	LL	BB	CC	E₁	E2	F	M	N	G	Z	FLANGE					INPUT HOLE			OUTPUT SHAFT			KG
														LA	LB	LC	LG	LZ	Q	U	TV	LS	S	WY
50	0.18	1/10 1/20 10 1/40 1/50 1/60	87	76	95	50	53	77	100	160	125	15	11	115	95	140	10	M8	25	11	412.8	40	17	53	7.5
60	0.18		78	82	110	60	68	92	100	190	130	15	11	115	95	140	10	M8	25	11	412.8	50	22	74	12
	0.37													130	110	160			35	14	516.3
70	0.37		101	95	130	70	75	115	120	230	155	20	15	130	110	160	10	M8	33	14	516.3	60	28	74	15
	0.75													165	130	200		M10	43	19	621.8
80	0.75		118	100	140	80	96	144	125	265	160	20	15	165	130	200	12	M10	43	19	621.8	65	32	1045	22
	1.5																		55	24	827.3
100	1.5		145	135	155	100	100	150	155	310	195	22	15	165	130	200	15	M10	55	24	827.3	75	38	104.5	38
	2.2													215	180	250		M12	65	28	831.3
120	2.2		160	160	185	120	120	180	180	360	230	28	18	215	180	250	18	M12	65	28	831.3	85	45	124.5	60
	3.0
135	3.0		183	170	210	135	130	200	200	390	250	30	18	215	180	250	20	M12	65	28	831.3	95	55	155	80
	4.0
