speed reducer

speed reducer

DS(WPDS)

Shaft Direction
speed reducer

speed reducer

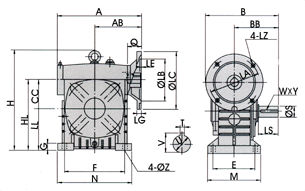

SIZE	KW	RATIO	A	AB	B	BB	CC	E	F	G	H	HL	LL	M	N	Z	FLANGE						INPUT HOLE			OUTPUT SHAFT			Kg
																	LA	LB	LC	LE	LG	LZ	Q	U	TV	LS	S	WY
50	0.18	1/10 1/20 10 1/40 1/50 1/60	165	95	175	95	50	95	110	15	180	130	80	120	140	11	115	95	140	5	10	M8	25	11	412.5	40	17	53	7
60	0.37		185	105	190	110	60	105	120	20	205	150	90	130	150	11	130	110	160	5	12	M8	35	14	516.3	50	22	74	11
70	0.37		209	115	210	130	70	115	150	20	235	175	105	150	190	15	130	110	160	5	12	M8	35	14	516.3	60	28	74	15
	0.75				230												165	130	200		15	M10	45	19	621.8
80	0.75		242	135	240	140	80	135	180	20	265	200	120	170	220	15	165	130	200	5	15	M10	45	19	621.8	65	32	104.5	23
	1.5																						55	24	827.3
100	1.5		310	175	255	155	100	155	220	25	363	250	150	190	260	15	165	130	200	5	15	M10	55	24	827.3	75	38	104.5	38
120	2.2		361	205	310	185	120	180	260	30	424	300	180	230	320	18	215	180	250	5	18	M12	65	28	831.3	85	45	124.5	65
	3.0
135	3.0		412	235	335	210	135	200	290	30	481	350	215	250	350	18	215	180	250	5	18	M12	65	28	831.3	95	55	155	84
	4.0
155	5.5		442	250	402	252	155	220	320	32	536	390	235	280	380	20	265	230	300	5	22	M12	85	38	1041.3	110	60	155	120
