Configutation of single--stage Reduction Horizontal Type Reducers

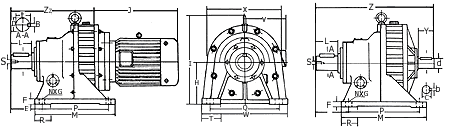

Model BWD,BW(Single Stage Reduction)Contour and Installation Dimensions

Frame No.	Contour dimensions(mm)							Installstion Dimensions(mm)										Size of Shaft End(mm)
	M	W	Z1	Z2	I	X	JV	P	E	R	F	Q	T	S	N	G	H	B	T	D	L	b	c	d	r
10	110	140	182	129	114	127	According to the Dimensions of Medium Flange and Motor	80	74	35	12	115	36	M4	4	11	80	6	20.5	18js6	28	5	16	14js6	25
12	120	185	215	165	190	168		90	93	-	15	150	35	M8	4	11	100	8	33	30js6	35	5	17	15js6	22
15	160	250	262	200	260	210		120	120	-	18	210	50	M8	4	15	120	10	38.5	35k6	56	6	22.5	20js6	30
18	230	290	335	260	300	245		180	125	-	20	240	60	M8	4	15	140	14	49	45k6	75	8	28	25js6	40
22	280	330	393	311	350	290		220	155	-	20	290	65	M10	4	17	160	16	60	55k6	90	8	33	30js6	45
27	380	400	462	359	430	350		320	153	65	25	340	70	M12	4	22	200	20	76	70m6	100	10	38.5	35k6	60
33	440	470	545	432	520	420		380	155	100	32	420	80	M16	4	22	240	24	97	90m6	116	14	49	45k6	70
39	520	560	668	528	605	500		440	200	150	35	500	90	M20	4	26	280	28	108	100m6	140	16	55	50k6	80
45	600	690	783	594	706	580		500	245	150	45	630	105	M24	4	28	325	28	116	110m6	165	16	60	66k6	82
55	810	880	966	733	880	735		330*2	322	-	50	800	140	M33	6	36	420	36	140	130m6	200	20	76	70k6	105
65	900	1030	1120	-	1008	855		375*2	354	-	55	920	170	M36	6	40	490	40	171	150m6	240	24	87	80k6	130
