TYPE XL-101-INV

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP. HP	INP. KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT	LUBRICATING OIL
3.10: 1	540 / 1000	174 / 323	55 / 85	40 / 62	2218 / 1851		Kg 61	TYPE	QUANTITY 1
4.11: 1	540 / 1000	131 / 243	37 / 55	27 / 40	1979 / 1588		Kg 61	SAE.90EP

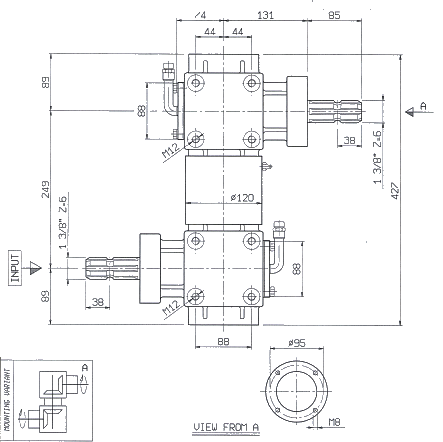

     TYPE XL-S8-C2

GEAR RATIO	INPUT RPM	OUTPUT RPM	INP. HP	INP. KW	OUT.TORQ.Nm	GEAR SPECIFICATION	WEIGHT	LUBRICATING OIL
1 : 1	540	540	38	28	478			TYPE	QUANTITY 1
1 : 1,46	540	788	38	28	328			SAE.90EP
