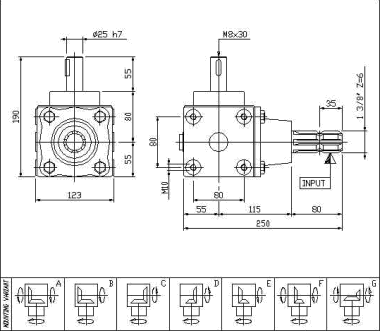

TYPE XL-2

bearboxes rv2



GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

OUT.TORQ.Nm

GEAR SPECIFICATION

WEIGHT

LUBRICATING OIL

1: 3.25

540

1755



Kg 9

TYPE

QUANTITY 1

1: 2.78

540

1501



Kg 9

SAE.90EP



1: 1.90

540

1026



Kg 9



1: 1.35

540

729



Kg 9



1: 1

540

540

15

11

189



Kg 9



1.35: 1

540

400

15

11

255



Kg 9



1.90: 1

540

284

9.5

7

240



Kg 9



2.78: 1

540

194

6

4.5

210



Kg 9



3.25: 1

540

166

6

4.5

245



Kg 9

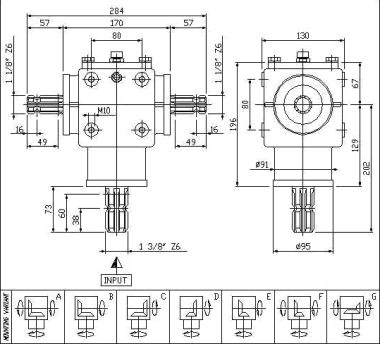

TYPE XL-S-020

GEAR RATIO

INPUT RPM

OUTPUT RPM

INP. HP

INP. KW

 OUT.TORQ.Nm GEAR SPECIFICATION WEIGHT LUBRICATING OIL

1: 1

540

540

28

21

352

 Kg 11 TYPE QUANTITY 1

1.46: 1

540

370

25

18.75

459

 Kg 11 SAE.90EP

2: 1

540

270

22

16.5

554

 Kg 11

2.9: 1

540

186

18

13.5

658

 Kg 11

1: 1.46

540

788

28

21

241

 Kg 11

1: 2

540

1080

25

18.75

157

 Kg 11

1: 2.9

540

1566

25

18.75

108

 Kg 11
