MOTORCYCLE CHAIN | |||
MOTORCYCLE CHAIN | |||

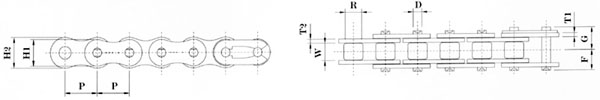

gold stone CHAIN NO. |
pitch ×width |
poller | links | pin | average ultimate strength kgf | appro?weight kg/m | ||||||
|
p×w |
dia | height | thickness | dia | lengths | |||||||
inch | m/m | R | H1 | H2 | T | T2 | D | F | G | |||
25 |
1/4＂×1/8＂ |
6.35×3.18 |
3.30 | 5.00 | 5.80 | T10.75 | 0.75 | 2.30 | 3.80 | 4.80 | 450 | 0.14 |
25-2 |
1/4＂×1/8＂ |
6.35×3.18 |
3.30 | 5.00 | 5.80 | T10.75 | 0.75 | 2.30 | 7.03 | 8.02 | 900 | 0.26 |
25H |
1/4＂×1/8＂ |
6.35×3.18 |
3.30 | 5.00 | 5.80 | 1.00 | 1.00 | 2.30 | 4.50 | 5.10 | 560 | 0.16 |
415S |
1/2＂×5/16＂ |
12.70×7.76 |
7.77 | 8.55 | 9.70 | 1.00 | 1.00 | 3.62 | 5.50 | 6.70 | 920 | 0.33 |
415H |
1/2＂×5/16＂ |
12.70×7.76 |
7.77 | 10.20 | 11.80 | 1.50 | 1.50 | 3.96 | 6.40 | 7.80 | 1850 | 0.50 |
420 |
1/2＂×1/4＂ |
12.70×6.35 |
7.77 | 10.20 | 11.80 | 1.50 | 1.50 | 3.96 | 7.50 | 8.40 | 1850 | 0.58 |
420H |
1/2＂×1/4＂ |
12.70×6.35 |
7.77 | 10.20 | 11.80 | 1.50 | 1.50 | 3.96 | 8.10 | 8.95 | 1900 | 0.65 |
425 |
1/2＂×5/16＂ |
12.70×7.94 |
7.92 | 10.20 | 11.80 | 1.80 | 1.80 | 3.96 | 8.20 | 9.35 | 1850 | 0.58 |
428 |
1/2＂×5/16＂ |
12.70×7.94 |
8.50 | 11.20 | 11.90 | 1.50 | 1.50 | 4.44 | 8.25 | 9.40 | 1900 | 0.68 |
428H |
1/2＂×5/16＂ |
12.70×7.94 |
8.50 | 11.20 | 12.20 | 1.80 | 1.80 | 4.44 | 8.90 | 10.20 | 2300 | 0.79 |
428SH |
1/2＂×5/16＂ |
12.70×7.94 |
8.50 | 11.20 | 12.20 | 2.00 | 2.00 | 4.44 | 9.30 | 10.70 | 2400 | 0.85 |
520 |
5/8＂×1/4＂ |
15.875×6.35 |
10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 5.06 | 8.50 | 10.10 | 3100 | 0.90 |
520H |
5/8＂×1/4＂ |
15.875×6.35 |
10.16 | 13.00 | 14.80 | 2.40 | 2.40 | 5.06 | 9.30 | 10.90 | 3300 | 1.00 |
525 |
5/8＂×5/16＂ |
15.875×7.94 |
10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 5.06 | 9.30 | 10.90 | 3100 | 0.97 |
525H |
5/8＂×5/16＂ |
15.875×7.94 |
10.16 | 13.00 | 14.80 | 2.40 | 2.40 | 5.06 | 10.00 | 11.60 | 3100 | 1.05 |
530 |
5/8＂×3/8＂ |
15.875×9.53 |
10.16 | 13.00 | 14.80 | 2.00 | 2.00 | 5.06 | 10.10 | 11.60 | 3100 | 1.01 |
530H |
5/8＂×3/8＂ |
15.875×9.53 |
10.16 | 13.00 | 14.80 | 2.40 | 2.40 | 5.06 | 10.90 | 12.40 | 3300 | 1.12 |
