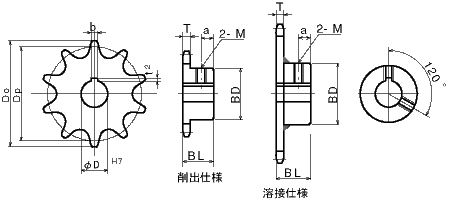

| FBN2040SB |
|
  |
| Chain | No.2040S | (2040) | | | Pitch | (P) | 25.4 mm | (1inch) | | Internal width | (W) | 7.95 mm | | | Roller Dia. | (Dr) | 7.95 mm | | | Tooth width | (T) | 7.2 mm | |
| |
Outside
dia.
Do | Pitch
dia.
Dp | Hub | a | Weight
(kg) | Sprocket
No. |
Teeth
no. |
Bore
dia.
H7 |
| BD | BL | Type | efected
teeth |
| 84 | 78.23 | 60 | 25 | 7 | 0.61 | FBN2040SB | 9
1/2 |
19 | 20,25,30,35,40 |
| 92 | 86.17 | 69 | 25 | 7 | 0.82 | 10
1/2 |
21 | 20,25,30,35,40 |
| 100 | 94.15 | 77 | 25 | 7 | 0.98 | 11
1/2 |
23 | 20,25,30,35,40 |
| 108 | 102.14 | 63 | 25 | 7 | 0.83 | 12
1/2 |
25 | 20,25,30,35,40 |
Finished
Bore
Finished
bore
D | Keyway
bXt2 | Setscrewｭｳ
M | | 18~22 | 6X2.8 | 6 | | 24~30 | 8X3.3 | 8 | | 32~38 | 10X3.3 | 8 | | 40~42 | 12X3.3 | 8 | | 45~50 | 14X3.8 | 10 |
| |

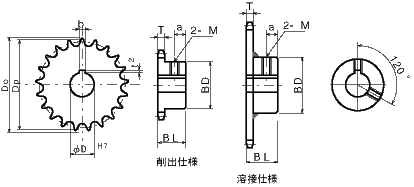

| FBN2060SB |
|
| |
| Chain | No.2060HS | (2060H) | | | Pitch | (P) | 38.10 mm | (1-1/2inch) | | Internal width | (W) | 12.70 mm | | | Roller Dia. | (Dr) | 11.91 mm | | | Tooth width | (T) | 11.7 mm | |
| |
Outside
dia.
Do | Pitch
dia.
Dp | Hub | a | Weight
(kg) | Sprocket
No. |
Teeth
no. |
Bore
dia.
H7 |
| BD | BL | Type | efected
teeth |
| 126 | 117.34 | 83 | 40 | 12 | 2.03 | FBN2060SB | 9
1/2 |
19 | 25,30,35,40 |
| 138 | 129.26 | 83 | 40 | 12 | 2.23 | 10
1/2 |
21 | 25,30,35,40 |
| 150 | 141.22 | 80 | 45 | 12 | 2.56 | 11
1/2 |
23 | 25,30,35,40 |
| 162 | 153.20 | 80 | 45 | 12 | 2.81 | 12
1/2 |
25 | 25,30,35,40 |
Finished
Bore
Finished
bore
D | Keyway
bXt2 | Setscrewｭｳ
M | | 18~22 | 6X2.8 | 6 | | 24~30 | 8X3.3 | 8 | | 32~38 | 10X3.3 | 8 | | 40~42 | 12X3.3 | 8 | | 45~50 | 14X3.8 | 10 |
| |
| FBN2100SB |
|
 |
| Chain | No.2100HS | (2100H) | | Pitch | (P) | 63.50 mm | | Internal width | (W) | 19.05 mm | | Roller Dia. | (Dr) | 19.05 mm | | Tooth width | (T) | 17.6 mm |
| |
Outside
dia.
Do | Pitch
dia.
Dp | Hub | a | Weight
(kg) | Sprocket
No. |
Teeth
no. |
Bore
dia.
H7 |
| BD | BL | Type | efected
teeth |
| 209 | 195.57 | 107 | 50 | 16 | 5.91 | FBN2100SB | 9
1/2 |
19 | 35,40,45,50 |
Finished
Bore
Finished
bore
D | Keyway
bXt2 | Setscrewｭｳ
M | | 18~22 | 6X2.8 | 6 | | 24~30 | 8X3.3 | 8 | | 32~38 | 10X3.3 | 8 | | 40~42 | 12X3.3 | 8 | | 45~50 | 14X3.8 | 10 |
| |

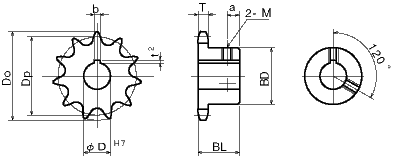

| FBN2050RB |
|
  |
| Chain | No.2050R | (2052) | |
| Pitch | (P) | 31.75 mm | (1-1/4inch) |
| Internal width | (W) | 9.53 mm | |
| Roller Dia. | (Dr) | 10.16 mm | |
| Tooth width | (T) | 8.7 mm | |
Outside
dia.
Do | Pitch
dia.
Dp | Hub | a | Weight
(kg) | Sprocket
No. |
Finished
bore
H7 |
| BD | BL | Type | efected
teeth |
| 116 | 102.75 | 73 | 28 | 8 | 1.10 | FBN
2050RB | 10 | 25,30,35,40 |
| 127 | 112.70 | 73 | 28 | 8 | 1.20 | 11 | 25,30,35,40 |
| 138 | 122.67 | 73 | 28 | 8 | 1.30 | 12 | 25,30,35,40 |
| 148 | 132.67 | 73 | 28 | 8 | 1.50 | 13 | 25,30,35,40 |
| 158 | 142.68 | 73 | 28 | 8 | 1.90 | 14 | 25,30,35,40 |
| 168 | 152.71 | 73 | 28 | 8 | 2.00 | 15 | 25,30,35,40 |
| 199 | 182.84 | 83 | 35 | 10 | 2.75 | 18 | 25,30,35,40 |
| 220 | 202.96 | 83 | 35 | 10 | 3.15 | 20 | 25,30,35,40 |
Finished
Bore
Finished
bore
D | Keyway
bXt2 | Setscrewｭｳ
M | | 18~22 | 6X2.8 | 6 | | 24~30 | 8X3.3 | 8 | | 32~38 | 10X3.3 | 8 | | 40~42 | 12X3.3 | 8 | | 45~50 | 14X3.8 | 10 |
| |
| FBN2080RB |
|
| |
| Chain | No.2080HR | (2082H) | | | Pitch | (P) | 50.80 mm | (2inch) | | Internal width | (W) | 15.88 mm | | | Roller Dia. | (Dr) | 28.58 mm | | | Tooth width | (T) | 14.6 mm | |
| |
Outside
dia.
Do | Pitch
dia.
Dp | Hub | a | Weight
(kg) | Sprocket
No. |
Bore
dia.
H7 |
| BD | BL | Type | efected
teeth |
| 204 | 180.31 | 107 | 45 | 12 | 4.42 | FBN2080RB | 11 | 30,35,40,45 |
| 220 | 196.28 | 107 | 45 | 12 | 4.94 | 12 | 30,35,40,45 |
Finished
Bore
Finished
bore
D | Keyway
bXt2 | Setscrewｭｳ
M | | 18~22 | 6X2.8 | 6 | | 24~30 | 8X3.3 | 8 | | 32~38 | 10X3.3 | 8 | | 40~42 | 12X3.3 | 8 | | 45~50 | 14X3.8 | 10 |
|
|
