Roller Chain ANSI Standard

ISO chain NO.

ANSI chain NO.

pitch

roller diameter

width between inner plates

bearing pin body diameter

width over bearing pins

width over connecting pins

inner plates depth

transverse pitch

ultimate tensile strength

weight per meter

p

d1  max

b1  min

d2  max

L  max

Lc  max

h2  max

P1

Q  min

q

mm

mm

mm

mm

mm

mm

mm

mm

kN

kg/m

04C-1

25

6.35

3.30

3.18

2.31

7.9

8.4

6.02

/

3.5

0.14

06C-1

35

9.525

5.08

4.77

3.58

12.4

13.17

8.7

/

7.9

0.33

085-1

41

12.7

7.77

6.25

3.58

13.75

15.0

9.91

/

6.67

0.41

08A-1

40

12.7

7.95

7.85

3.96

16.6

17.8

12.0

/

13.8

0.62

10A-1

50

15.875

10.16

9.40

5.08

20.9

22.2

15.09

/

21.8

1.02

12A-1

60

19.05

11.91

12.57

5.94

25.9

28.3

18.0

/

31.1

1.50

16A-1

80

25.4

15.88

15.75

7.92

32.7

36.5

24.0

/

55.6

2.60

20A-1

100

31.75

19.05

18.90

9.53

40.4

44.7

30.0

/

86.7

3.91

24A-1

120

38.1

22.23

25.22

11.10

50.3

54.3

35.7

/

124.6

5.62

28A-1

140

44.45

25.40

25.22

12.70

54.4

59.0

41.0

/

169.0

7.50

32A-1

160

50.8

28.58

31.55

14.27

64.8

69.6

47.8

/

222.4

10.10

36A-1

180

57.15

35.71

35.48

17.46

73.9

83.0

53.6

/

280.2

13.45

40A-1

200

63.5

39.68

37.85

19.85

80.3

90.5

60.0

/

347.0

16.15

48A-1

240

76.2

47.63

47.35

23.81

95.5

105.5

72.39

/

500.4

23.20

04C-2

25-2

6.35

3.30

3.18

2.31

14.5

15.0

6.02

8.40

7.0

0.28

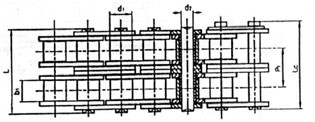

06C-2

35-2

9.525

5.08

4.77

3.58

22.5

23.3

8.7

10.13

15.8

0.63

08A-2

40-2

12.7

7.95

7.85

3.96

31.0

32.2

12.0

14.38

27.6

1.12

10A-2

50-2

15.875

10.16

9.40

5.08

38.9

40.4

15.09

18.11

43.6

2.00

12A-2

60-2

19.05

11.91

12.57

5.94

48.8

51.1

18.0

22.78

62.3

2.92

16A-2

80-2

25.4

15.88

15.75

7.92

62.7

65.8

24.0

29.29

111.2

5.15

20A-2

100-2

31.75

19.05

18.90

9.53

76.4

80.5

30.0

35.76

173.5

7.80

24A-2

120-2

38.1

22.23

25.22

11.10

95.8

99.7

35.7

45.44

249.1

11.70

28A-2

140-2

44.45

25.40

25.22

12.70

103.3

107.9

41.0

48.87

338.1

15.14

32A-2

160-2

50.8

28.58

31.55

14.27

124.2

128.1

47.8

58.55

444.8

20.14

36A-2

180-2

57.15

35.71

35.48

17.46

140.0

149.1

53.6

65.84

550.5

29.22

40A-2

200-2

63.5

39.68

37.85

19.85

151.9

162.1

60.0

71.55

639.9

32.24

48A-2

240-2

76.2

47.63

47.35

23.81

183.4

193.8

72.39

87.83

1000.8

45.23

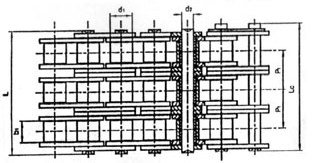

06A-3

40-3

12.7

7.955.08

7.85

3.96

45.4

46.6

12.0

14.38

41.4

1.90

10A-3

50-3

15.875

10.16

9.40

5.08

57.0

58.5

15.09

18.11

65.4

3.09

12A-3

60-3

19.05

11.91

12.57

5.94

71.5

73.9

18.0

22.78

93.4

4.54

16A-3

80-3

25.4

15.88

15.75

7.92

91.7

95.1

24.0

29.29

166.8

7.89

20A-3

100-3

31.75

19.05

18.90

9.53

112.2

116.3

30.0

35.76

260.2

11.77

24A-3

120-3

38.1

22.23

25.22

11.10

141.3

147.9

35.7

45.44

373.7

17.53

28A-3

140-3

44.45

25.40

25.22

12.70

152.2

156.9

41.0

48.87

507.1

22.20

32A-3

160-3

50.8

28.58

31.55

14.27

182.8

190.8

47.8

58.55

567.2

20.03

36A-3

180-3

57.15

35.71

35.48

17.46

206.0

215.1

53.6

65.84

840.7

38.22

40A-3

200-3

63.5

39.68

37.85

19.85

223.5

233.7

60.0

71.55

1040.9

49.03

48A-3

240-3

76.2

47.63

47.35

23.81

271.3

281.8

72.39

87.83

1501.3

71.60
